Beschreibung
Die SC-Pumpe ist mit einem Rückschlagventil am Abblasanschluß ausgestattet, so dass sich das Objekt sehr schnell vom Sauger löst. Diese Pumpe ist am besten für Hochgeschwindigkeitsanwendungen geeignet.

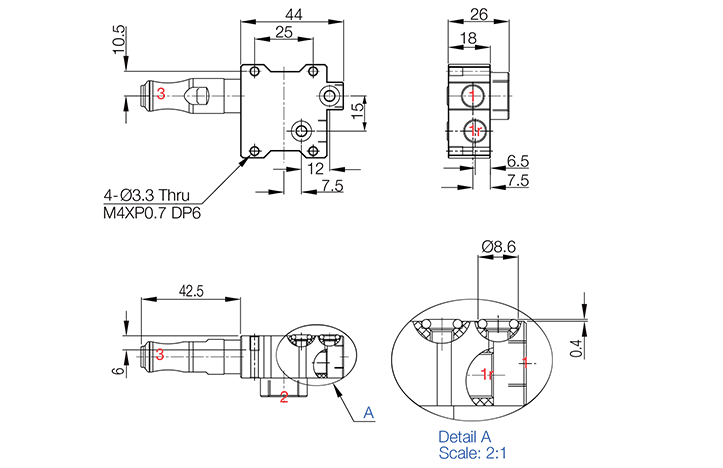

Angaben
1. General Specifications
| Max Vacuum Level |
-90 kPa |
| Open Vacuum Flow |
85 Nl/min |
| Feed Pressure |
1.7 ~ 4 bar (Max 7 bar) |
| Air Consumption |
40 Nl/min @ 4 bar |
| Temperature |
-20 ~ 80 ℃ |
| Weight – Basic pump |
85 g |
2. Vacuum Flow
| Max Vacuum |
Feed Pressure |
Vacuum Flow (Nl/min) at different vacuum level (-kPa) |
| -kPa |
bar |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
| 90 |
3.14 |
44 |
36 |
25 |
17 |
16 |
14 |
10 |
7 |
3.5 |
– |
| 89 |
4 |
42 |
39 |
29 |
21 |
16 |
12 |
9.5 |
7 |
2.4 |
– |
| 65 |
2.2 |
39 |
27 |
17 |
16 |
14 |
8.4 |
2.6 |
– |
– |
– |
| 49 |
1.7 |
39 |
20 |
16 |
12 |
5.3 |
– |
– |
– |
– |
– |
3. Evacuation Time
| Feed Pressure |
Air Consumption |
Evacuation time in sec per liter to reach different vacuum level (-kPa) |
| bar |
Nl/min |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
| 3.14 |
34 |
0.06 |
0.28 |
0.51 |
1.01 |
1.18 |
1.29 |
1.73 |
3 |
– |
| 4 |
40 |
0.08 |
0.24 |
0.50 |
0.71 |
0.85 |
1.18 |
1.41 |
3.05 |
– |
| 2.2 |
26 |
0.08 |
0.39 |
0.59 |
0.85 |
0.96 |
1.10 |
– |
– |
– |
| 1.7 |
22 |
0.13 |
0.40 |
0.79 |
1.57 |
– |
– |
– |
– |
– |
Bestellnummern
Basic Vacuum Pump & Spare Parts
| Part Number |
Description |
| SC203P-C |
SC pump, 3-stage cartridge, Plug |
| VC203 |
Mini vacuum cartridge, 3-stage |
| VCP-203PS2 |
Holding plug, SC203P |
