Beschreibung

Die VMECA PM Pumpe kann an spezifische Anforderungen angepasst werden, um in vielen Anwendungen eingesetzt zu werden, in denen ein hoher Vakuumdurchfluss erforderlich ist.

Bestellnummer


1. Basis-Modell

Zeichen
Beschreibung
PM303X1 PM pump, 3-stage, 1-vacuum cartridge, Silencer

2. Typ

Zeichen Beschreibung
A Ported 1-vacuum port on side
B Ported 2-vacuum port on side and top
  ☛ Option „B“ is available only with G3/4 vacuum port.

3. Vakuumanschluss

Zeichen Beschreibung
34 Vacuum port G3/4
01 Vacuum port G1

4. Mounting Bracket

Zeichen Beschreibung
Blank No mounting bracket
B1 4-point support
B2 2-point support

5. Air Saving Kit

Zeichen Beschreibung
Blank No air saving kit
ASV Air saving kit integrated with air control valve
AS Air saving kit without air control valve

6. Luftsteuerventil

Zeichen Beschreibung
Blank No air control valve
A1 Air control valve, AC 110V
A2 Air control valve, AC 220V
A3 Air control valve, DC 24V
D1 Double solenoid, Air control valve, AC 110V
D2 Double solenoid, Air control valve, AC 220V
D3 Double solenoid, Air control valve, DC 24V
  ☛ Double solenoid valve is available only with DN or DL valve terminal option.

7. Vacuum Release Valve

Zeichen Beschreibung
Blank No vacuum release control valve
R1 Vacuum release control valve, AC 110V
R2 Vacuum release control valve, AC 220V
R3 Vacuum release control valve, DC 24V

8. Ventilsteckverbindung

Zeichen Beschreibung
Blank No air & vacuum release control valves
DN Solenoid terminal, DIN type, No lead wire
DL Solenoid terminal, DIN type, No lead wire, Lamp
CL Solenoid terminal, Connector type, 30 cm lead wire
  ☛ Option „CL“ is available only with DC 24V.
2B Solenoid terminal, DIN, 2-in-1 BUS cable
3B Solenoid terminal, DIN, 2-in-1 BUS cable
4B Solenoid terminal, DIN, 2-in-1 BUS cable
  ☛ Option „2B“ and „3B“ are not available with Double solenoid valve.
  ☛ Option „3B“ and „4B“ are available only with DC 24V and S2 or S2P vacuum switch.

9. Vakuumschalter

Zeichen Beschreibung
Blank No vacuum switch
S2 Digital switch, No analog supply, M8-4-pin, NPN
S2P Digital switch, No analog supply, M8-4-pin, PNP
SG2 Digital switch, No analog supply, 2 m lead wire, NPN
SG2P Digital switch, No analog supply, 2 m lead wire, PNP
SG3 Digital switch, Analog supply, 2 m lead wire, NPN
SG3P Digital switch, Analog supply, 2 m lead wire, PNP

10. Ruckschlagventi

Zeichen Beschreibung
Blank No non-return valve
N Non-return valve
  The pump with air saving kit option do not require a non-return valve option.

11. Dichtungsmaterial

Zeichen Beschreibung
Blank NBR sealing material
V Viton sealing material
E EPDM sealing material

Angaben

1. Allgemeine Angaben

Max. Vakuumniveau -92 kPa
offener Vakuumdurchfluss 1,023 Nl/min
Eingangsdruck 2.2 ~ 4 bar (Max 7 bar)
Temperatur -20 ~ 80 ℃
Noise Level 50 ~ 60 dB
Weight – Basic Pump 1,519 g

2. Vakuumdurchfluss

Max. Vakuumniveau Eingangsdruck Vakuumdurchfluss (Nl/min) bei verschiedenen Vakuumniveaus (-kPa)
-kPa bar 0 10 20 30 40 50 60 70 80 90
92 4 1023 462 383 282 207 129 70 52 21 6.3
92 3 1014 456 318 192 99 96 66 50 19 6
75 2.2 902 368 264 159 94 86 50 14

3. Evakuierungszeit

Eingangsdruck Eingangsdruck Evakuierungszeit in Sekunden pro Liter um ein bestimmtes Vakuumniveau (-kPa) zu erreichen
bar Nl/min 10 20 30 40 50 60 70 80 90
4 456 0.004 0.01 0.02 0.03 0.06 0.14 0.20 0.33 1.13
3 354 0.005 0.02 0.03 0.09 0.12 0.21 0.24 0.40 1.27
2.2 291 0.006 0.03 0.04 0.10 0.14 0.24 0.54

Maße

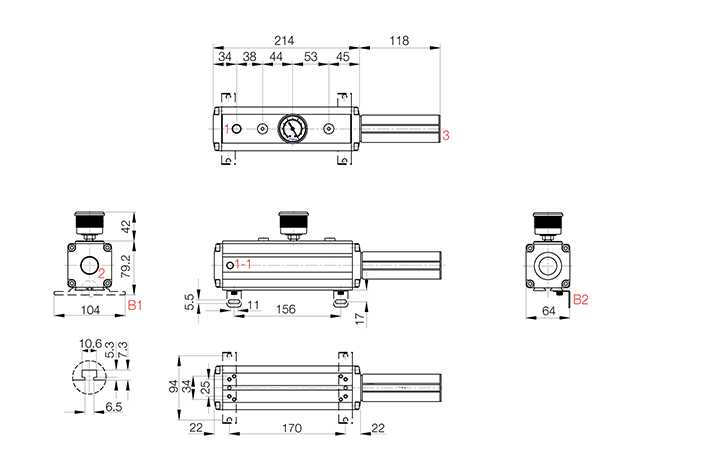

PM303X3-A: Basic Pump
Unit: mm

No Description
1 Compressed-Air Port, G1/4″
1-1 Vacuum Release Port, G1/8″
2 Vacuum Port, G3/4″ or G1″
3 Exhaust Port
B1 Mounting Bracket, Type B1
B2 Mounting Bracket, Type B2

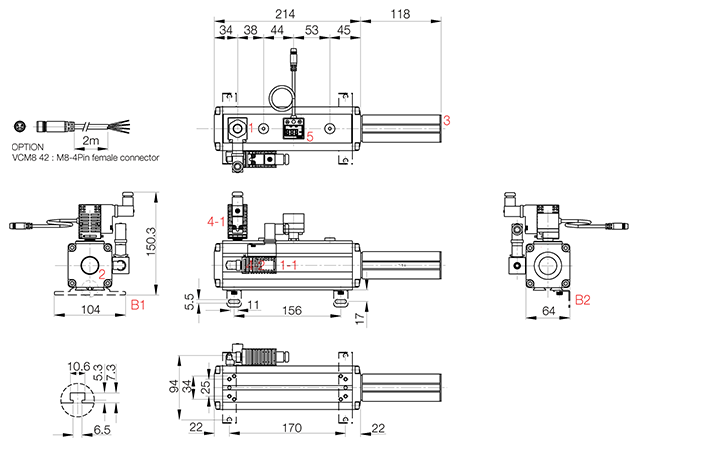

PM303X3-A: Basic Pump with accessories
Unit: mm

No Description
1 Compressed-Air Port, G1/4″
1-1 Vacuum Release Port, G1/8″
2 Vacuum Port, G3/4″ or G1″
3 Exhaust Port
4-1 Compressed-Air Control Valve
4-2 Vacuum Release Control Valve
5 Vacuum Switch
B1 Mounting Bracket, Type B1
B2 Mounting Bracket, Type B2

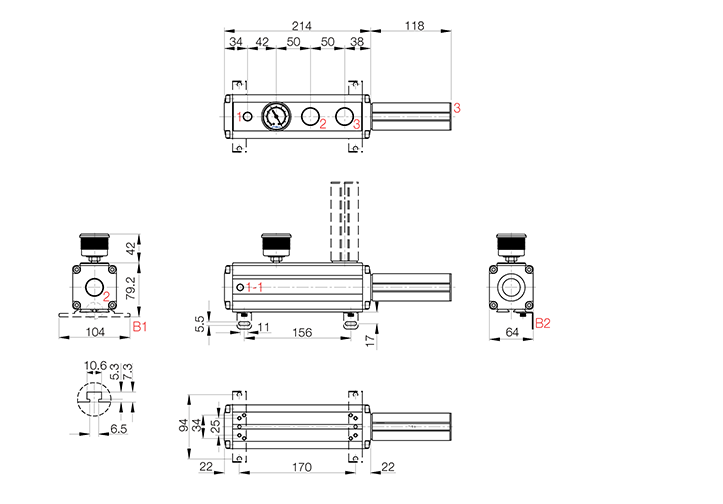

PM303X3-B: Basic Pump
Unit: mm

No Description
1 Compressed-Air Port, G1/4″
1-1 Vacuum Release Port, G1/8″
2 Vacuum Port, G3/4″
3 Exhaust Port
4-1 Compressed-Air Control Valve
4-2 Vacuum Release Control Valve
5 Vacuum Switch
B1 Mounting Bracket, Type B1
B2 Mounting Bracket, Type B2

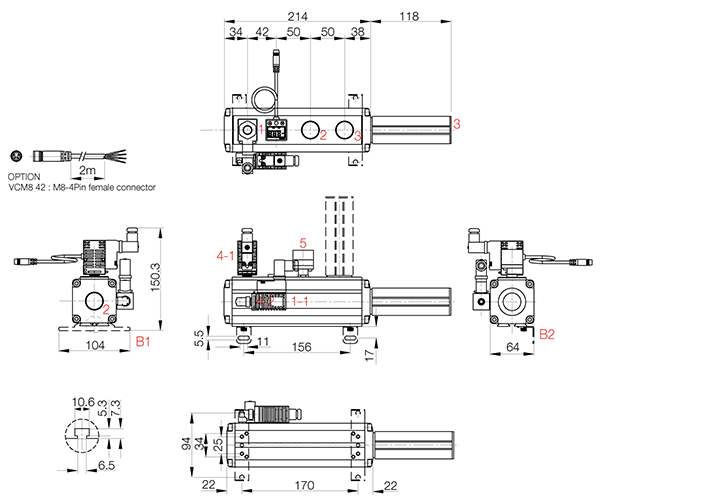

PM303X3-B: Basic Pump with accessories
Unit: mm

No Description
1 Compressed-Air Port, G1/4″
1-1 Vacuum Release Port, G1/8″
2 Vacuum Port, G3/4″ or G1″
3 Exhaust Port
4-1 Compressed-Air Control Valve
4-2 Vacuum Release Control Valve
5 Vacuum Switch
B1 Mounting Bracket, Type B1
B2 Mounting Bracket, Type B2

Bestellnummern

1. Basic Vacuum Pump

Artikelnummer Beschreibung
PM303X3-A-34 PML pump, 3-stage 3-cartridge, G3/4 vacuum port on side
PM303X3-A-34-B1 PML pump, 3-stage 3-cartridge, G3/4 vacuum port on side, 4-point bracket
PM303X3-A-34-B2 PML pump, 3-stage 3-cartridge, G3/4 vacuum port on side, 2-point bracket
PM303X3-A-01 PML pump, 3-stage 3-cartridge, G1 vacuum port on side
PM303X3-A-01-B1 PML pump, 3-stage 3-cartridge, G1 vacuum port on side, 4-point bracket
PM303X3-A-01-B2 PML pump, 3-stage 3-cartridge, G1 vacuum port on side, 2-point bracket
PM303X3-B-34 PML pump, 3-stage 3-cartridge, G3/4 vacuum port on top & side
PM303X3-B-34-B1 PML pump, 3-stage 3-cartridge, G3/4 vacuum port on top & side, 4-point bracket
PM303X3-B-34-B2 PML pump, 3-stage 3-cartridge, G3/4 vacuum port on top & side, 2-point bracket

2. Luftsteuerventil

Artikelnummer Beschreibung
VMS14-3-1 2/2-way valve, G1/4 Female, DC 24V, DIN type
VMS14-3-2 2/2-way valve, G1/4 Female, DC 24V, DIN type, Lamp
VMS14-3-3 2/2-way valve, G1/4 Female, DC 24V, Conn. type, 30 cm lead wire & Lamp
VMS14-2-1 2/2-way valve, G1/4 Female, DC 220V, DIN type
VMS14-2-2 2/2-way valve, G1/4 Female, DC 220V, DIN type, Lamp
VMS14-1-1 2/2-way valve, G1/4 Female, DC 110V, DIN type
VMS14-1-2 2/2-way valve, G1/4 Female, DC 110V, DIN type, Lamp
VMS14D-3-1 2/2-way double sol valve, G3/8 In, G1/4 Out, DC 24V, DIN type
VMS14D-3-2 2/2-way double sol valve, G3/8 In, G1/4 Out, DC 24V, DIN type, Lamp
VMS14D-2-1 2/2-way double sol valve, G3/8 In, G1/4 Out, AC 220V, DIN type
VMS14D-2-2 2/2-way double sol valve, G3/8 In, G1/4 Out, AC 220V, DIN type, Lamp
VMS14D-1-1 2/2-way double sol valve, G3/8 In, G1/4 Out, AC 110V, DIN type
VMS14D-1-2 2/2-way double sol valve, G3/8 In, G1/4 Out, AC 110V, DIN type, Lamp

3. Vakuumschalter

Artikelnummer Beschreibung
VP20V-01-F1-C Digital switch, No analog supply, M8-4-pin connector, NPN (S2)
VP20V-03-F1-C Digital switch, No analog supply, M8-4-pin connector, PNP (S2P)
VP20V-01-F1 Digital switch, No analog supply, 2 m lead wire, NPN (SG2)
VP20V-03-F1 Digital switch, No analog supply, 2 m lead wire, PNP (SG2P)
VP20V-01-F1-A Digital switch, Analog supply, 2 m lead wire, NPN (SG3)
VP20V-03-F1-A Digital switch, Analog supply, 2 m lead wire, PNP (SG3P)

4. Vakuum Ejektoren

Artikelnummer Beschreibung
VC303 Midi vacuum cartridge, 3-stage
VC303-N Midi vacuum cartridge, 3-stage, Non-return valve ☛ Pump with air saving kit

5. Other Parts

Artikelnummer Beschreibung
VTS-34 Free-flow silencer, G3/4
